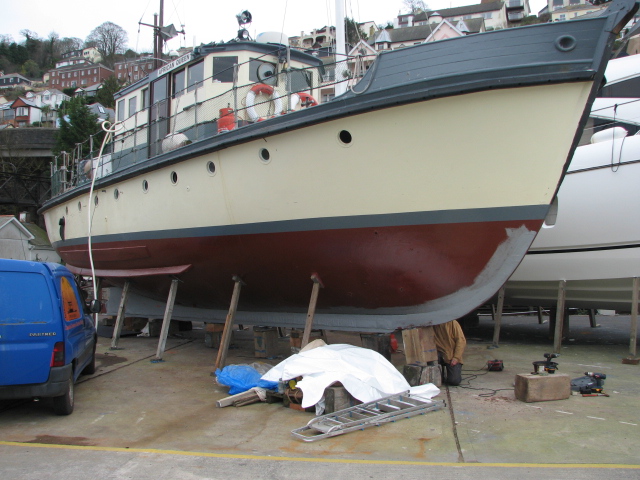

Up
on blocks at Darthaven Marina
|

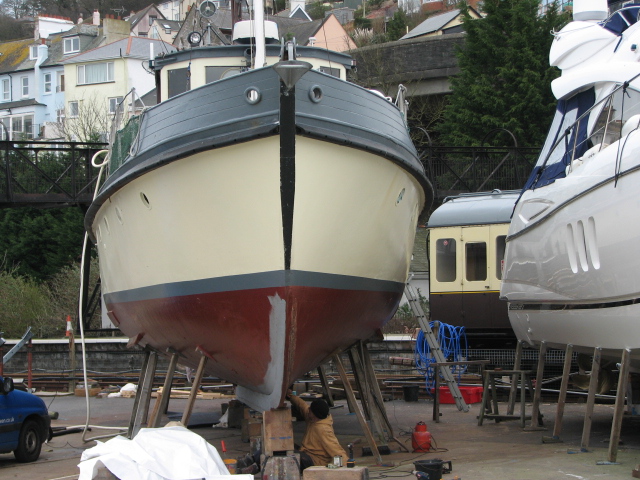

View
from the bow, we weighed in at 26 tons.
|

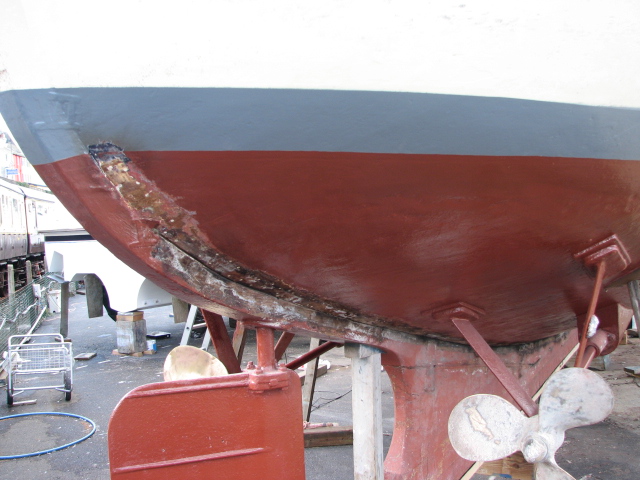

We
had to burn off fiberglass tape that some muppett
had stuck over the garboard seam
|
The whole length of the boat.
|

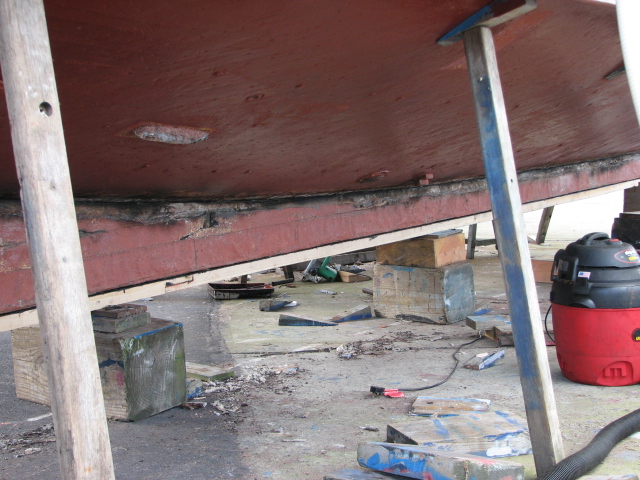

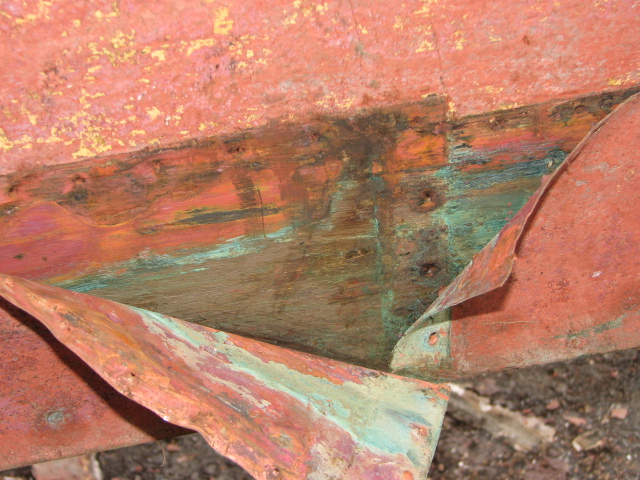

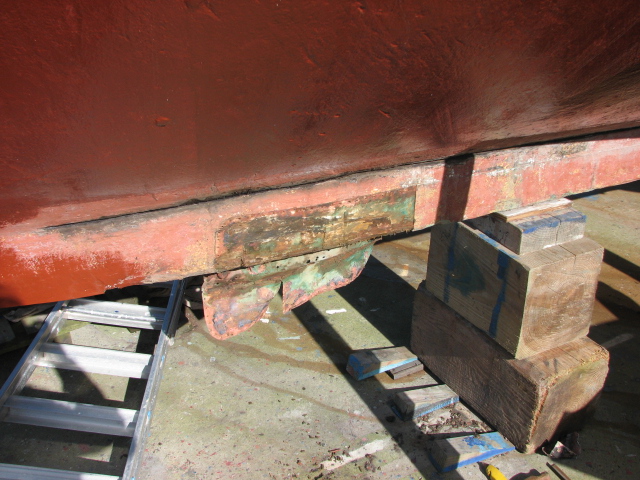

Stripped off some
copper sheathing on the keel to inspect the condition
of the keel timber
|

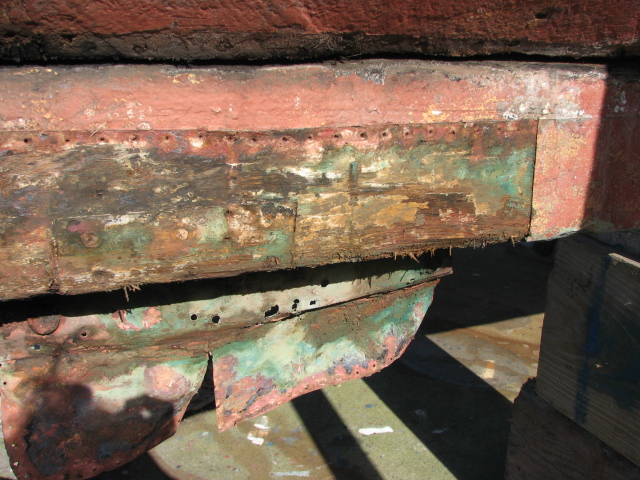

Timber was
in perfect condition.
|
 Copper
is used to stop 'Gribble' a wood boring worm that
loves Oak.
|

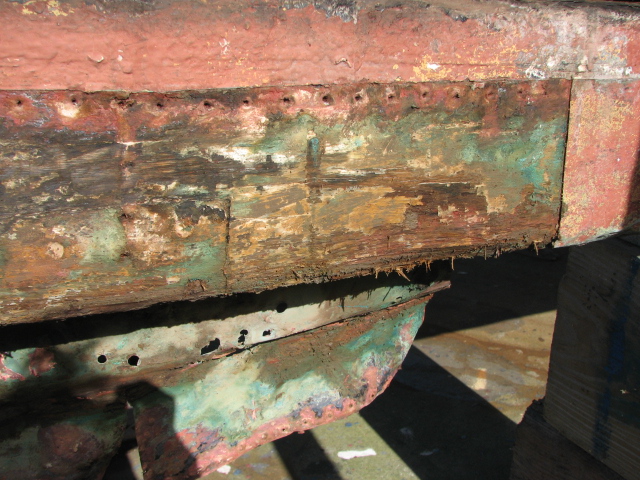

The Oak is in
better condition than the Copper
|
Fitted
a new false keel. 47 feet of English Oak. This piece
is 'sacrificial' to the main keel, takes the worst
of the wear, and is easily replaced.
|

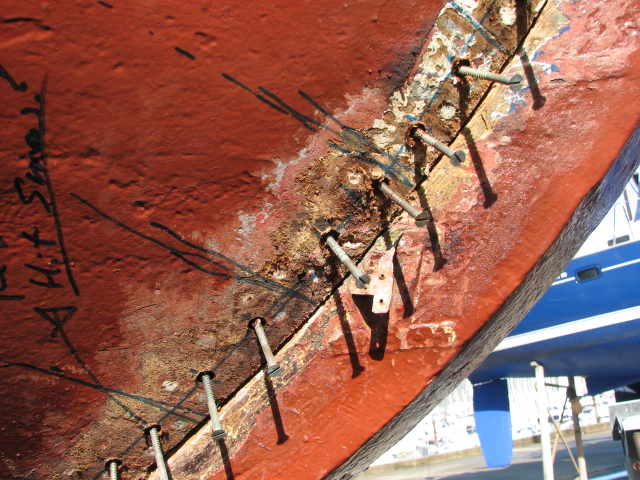

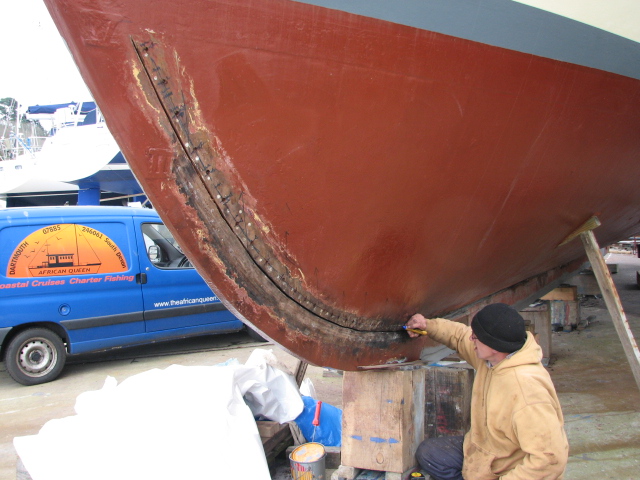

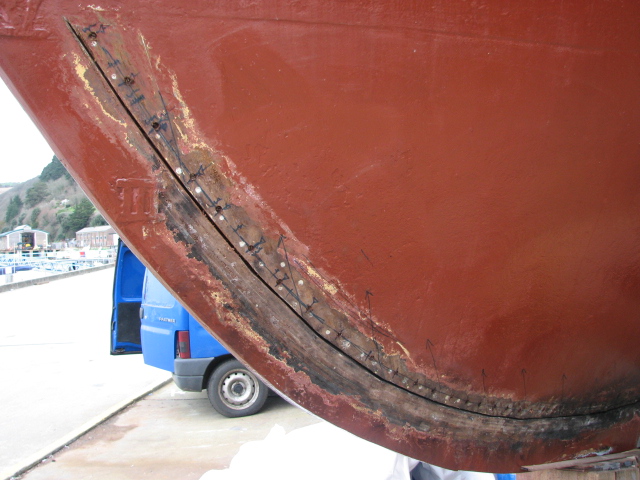

Raked out the garboard seam and set
about re-fixing the planks with 2 1/2 inch silicone
bronze screws
|
Timber looks rough because of the scraping
off of the tape, it had been stuck on with epoxy resin.
|

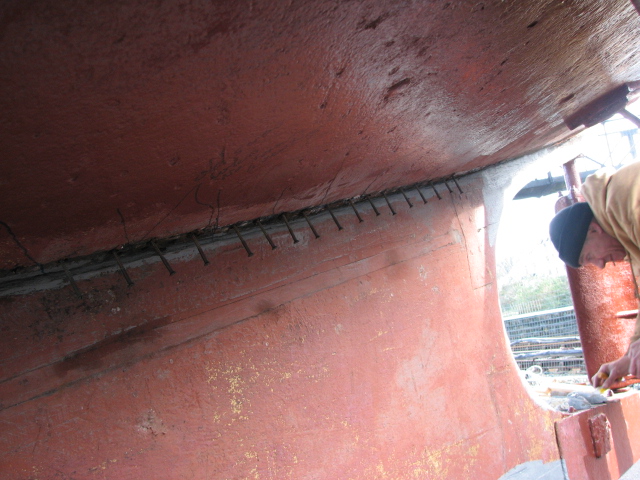

Screwed amidships.
|
And
astern.
|

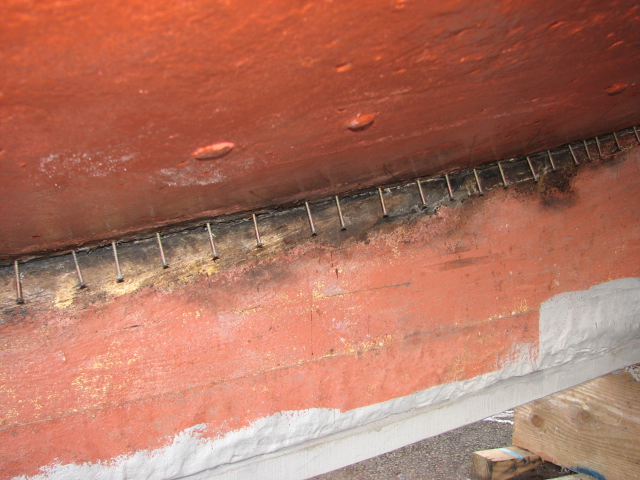

235
screws each side.They cost 71p each.
|

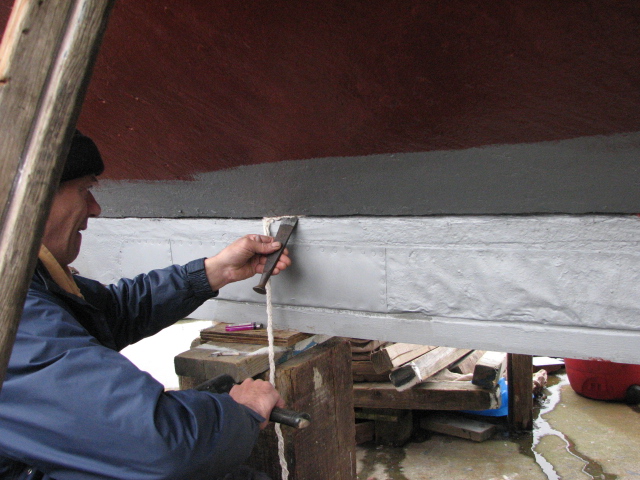

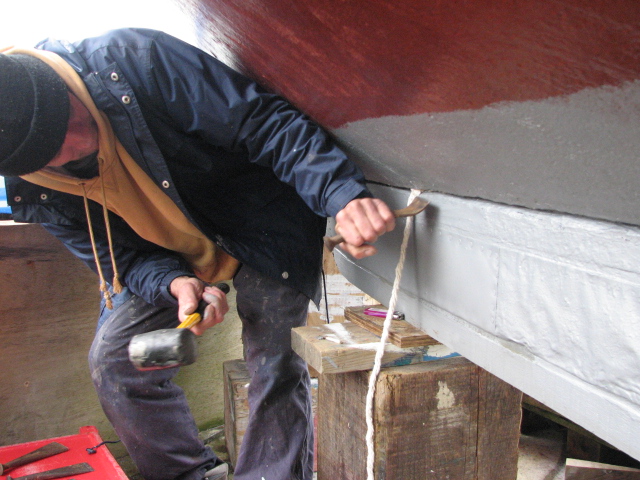

Caulking
the garboard seam.
|
Caulking material is cotton, twisted
into a thick yarn and hammered in between the planks
and the keel to form a watertight seal. |

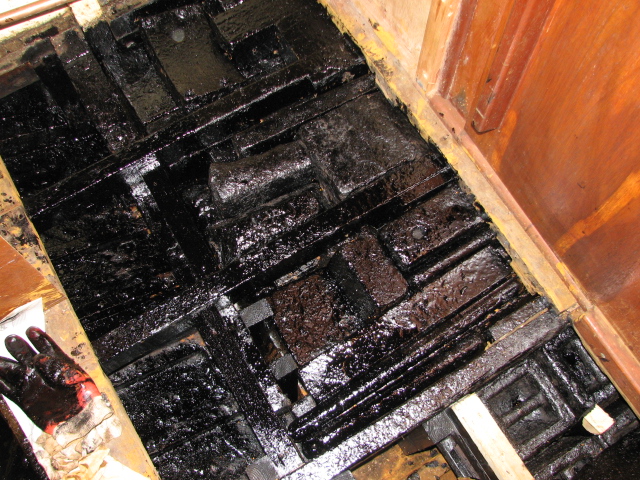

Ballast
taken out, hull scraped and painted, ballast painted
and re secured.
|

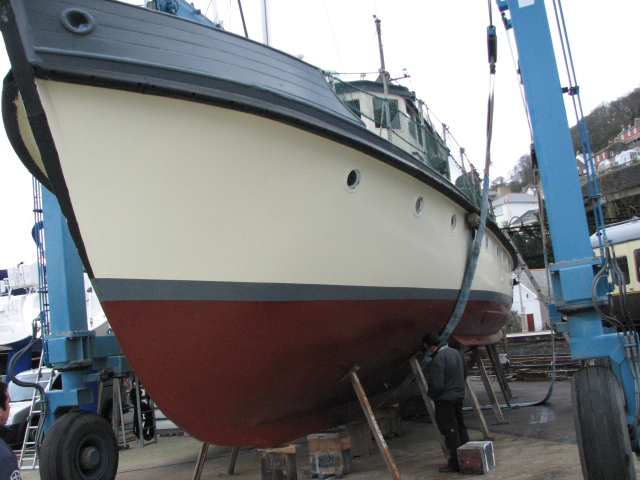

A
coat of paint topsides, anti-foul and ready to go
back in the water.
|

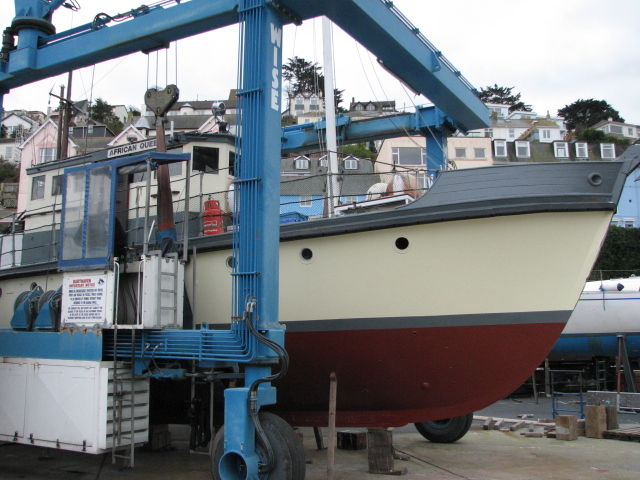

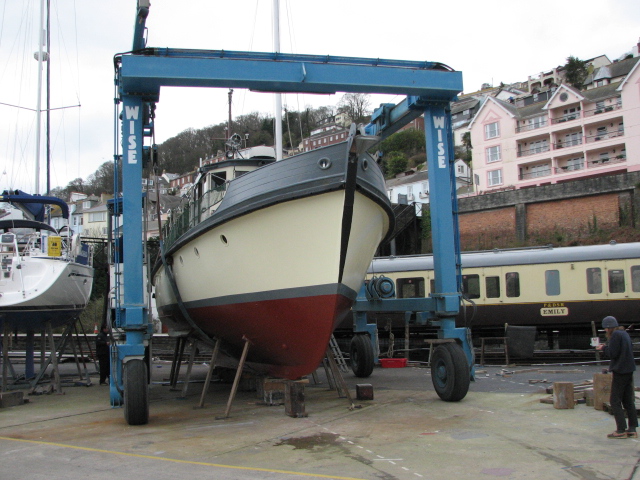

The
crane has a maximum capacity of 35 tons.
|
And runs on aircraft tyres.
|
